Intelligent air-pressure control takes up to 100% of a patient's body weight, in 1% steps. Patients can start walking early and gently, while every step is measured.

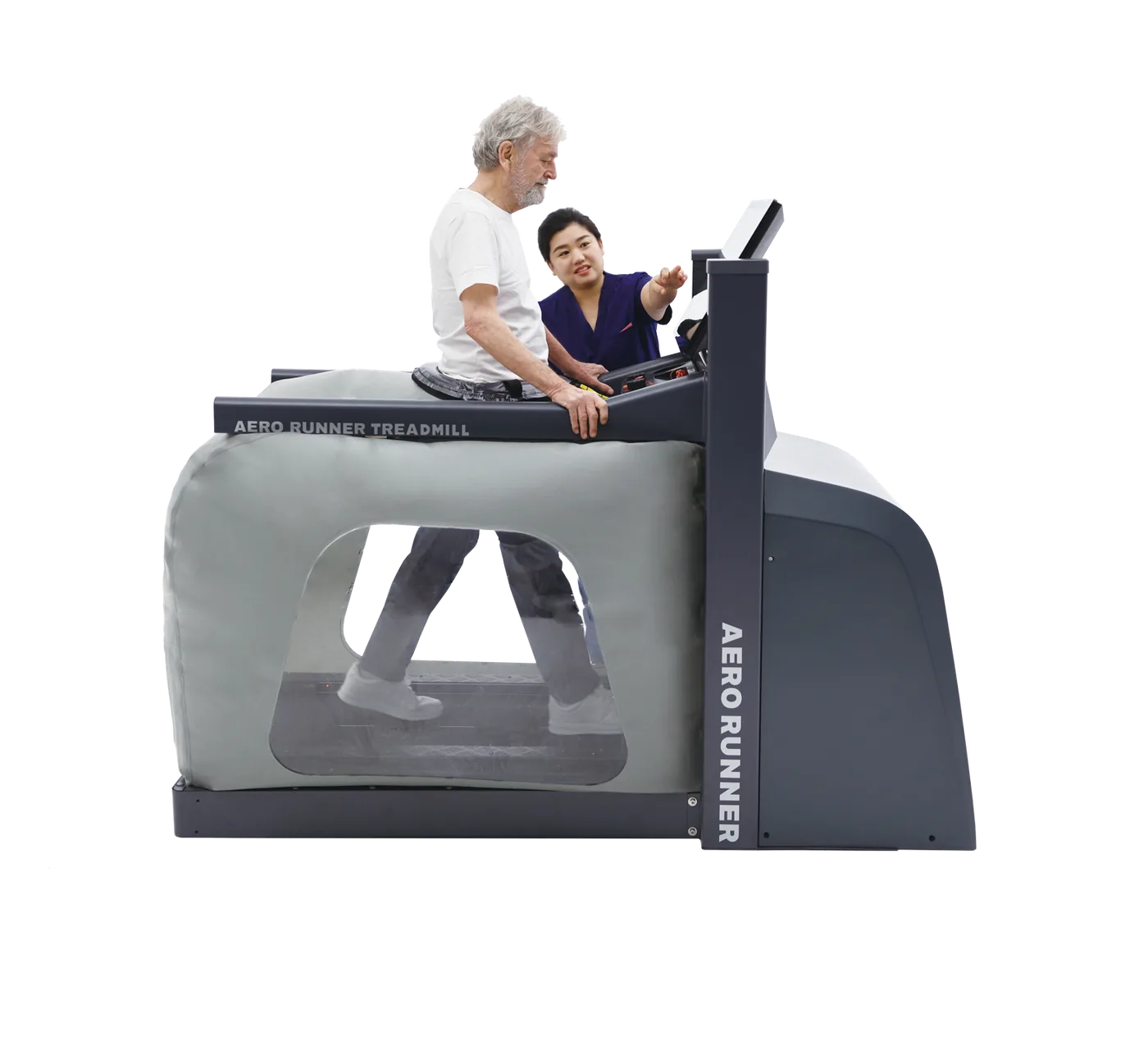

The patient steps into an airtight chamber that closes with a zip seal at the waist. Intelligent pressure control then lifts part of their body weight, so they can walk with less load on joints, bones and muscles.
The clinician sets support from 0 to 100% in 1% steps and lowers it as the patient progresses. ServoStep starts the belt at 0.1 km/h. GaitTrack Pro measures each step, while three cameras show the patient's gait live from the left, right and front.
Three models, GA100, GA200 and GA300, with top speeds of 20, 25 and 30 km/h
Reverse walking up to 10 km/h on every model
S models add report printing, motorised adjustment and a 32-inch screen
Key features
Built for safe, measurable progress
Three GoldenAll technologies work together through the intelligent pressure control system.
ServoStep
The gentlest possible start
The belt can start at just 0.1 km/h, so a patient's first steps are slow, steady and confident.
GaitTrack Pro
Every step measured
An infrared gait sensor tracks data in real time: symmetry, step and stride length, stance and swing phase, ground reaction and centre of pressure. S models print the report.
Heart-rate control · optional
Training at a target heart rate
With a heart-rate strap, the treadmill changes speed automatically to keep the heart rate at the level you set.
Software
One touchscreen for the whole session
A 23.8-inch touchscreen (32-inch on S models) puts the controls, gait data, live video and training scenarios side by side.

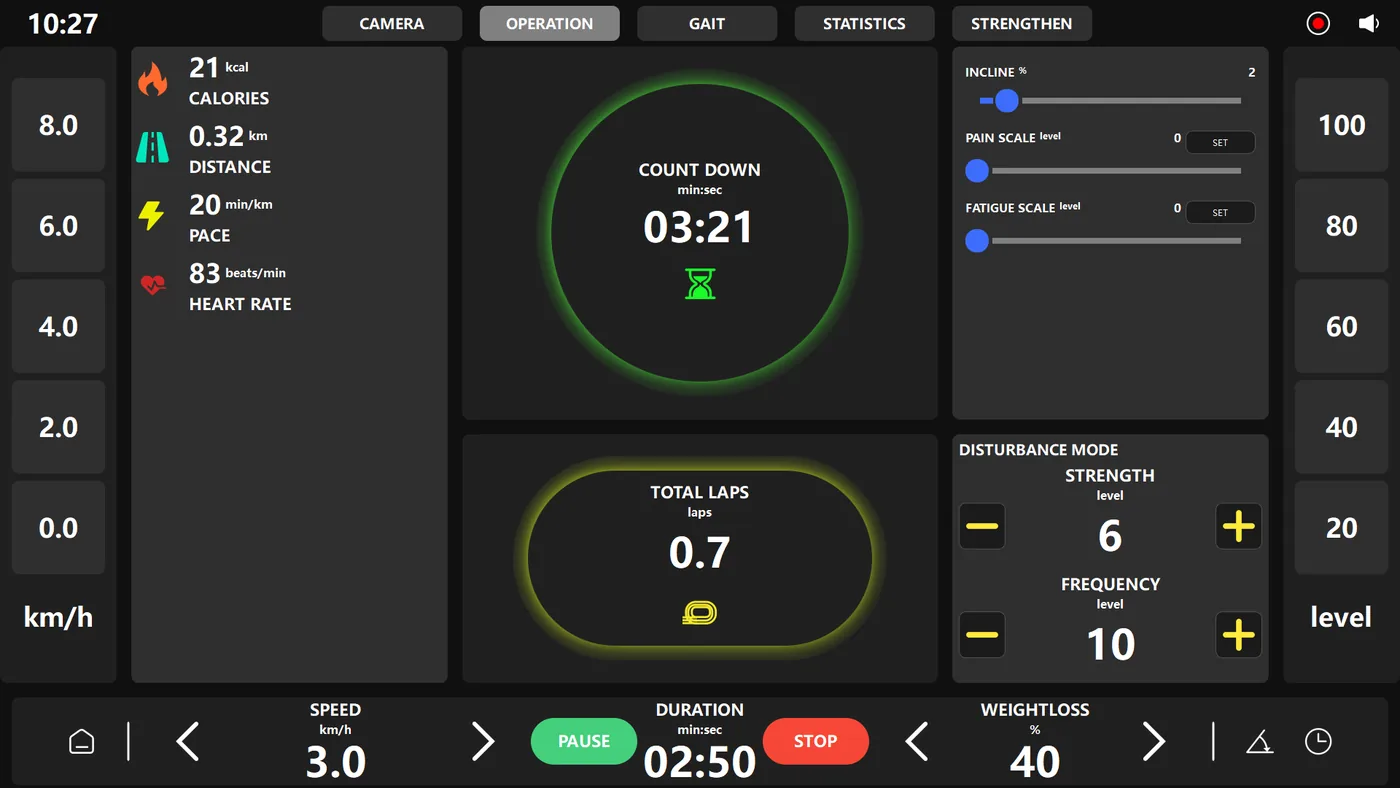

Operation
Speed, body-weight support and incline are set from one screen. Pain and fatigue scales can be recorded during the session.
Disturbance mode adjusts strength and frequency for balance work. The perturbation module for gait stability comes with S models.

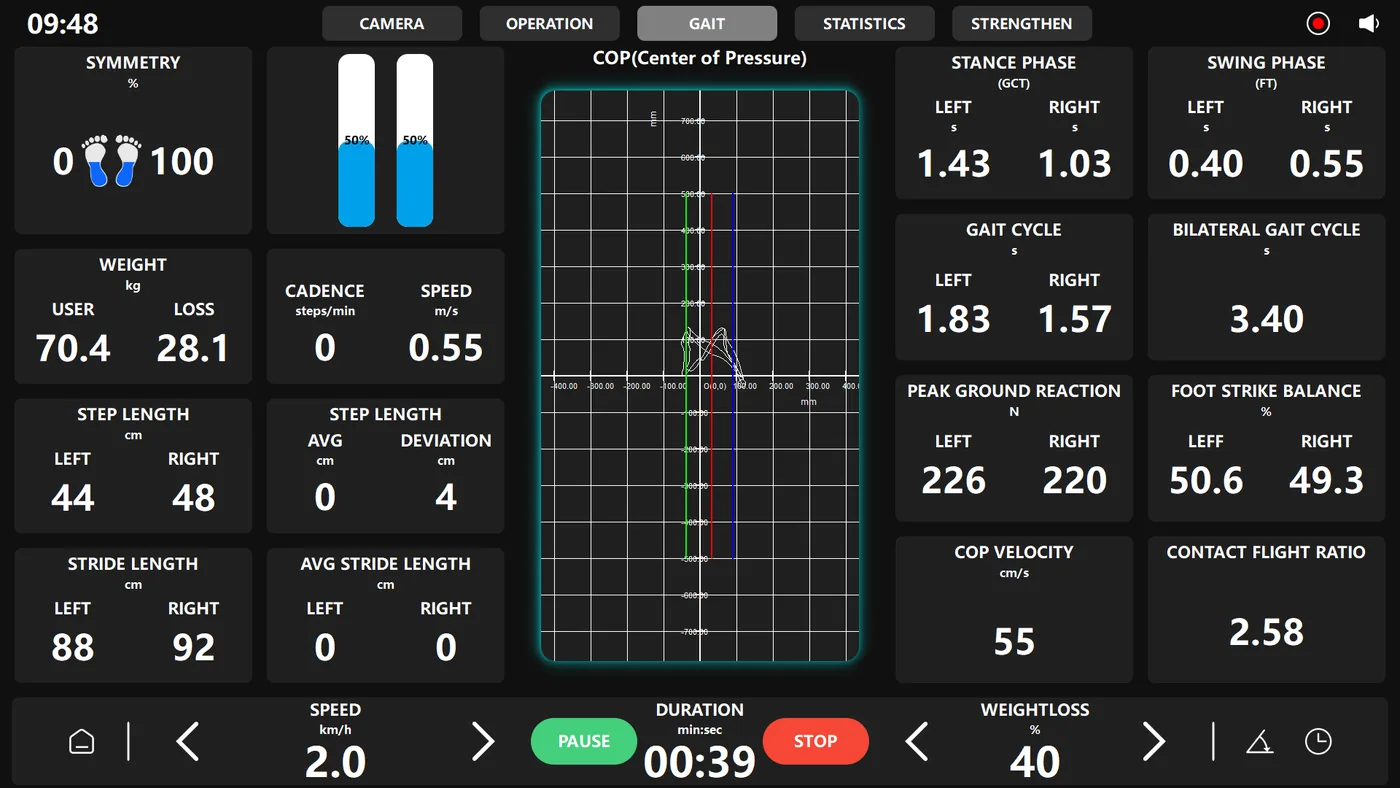

Gait analysis
Shows left and right step length, stride length, stance and swing phase, gait cycle, peak ground reaction, foot-strike balance and cadence. A live centre-of-pressure plot sits alongside.

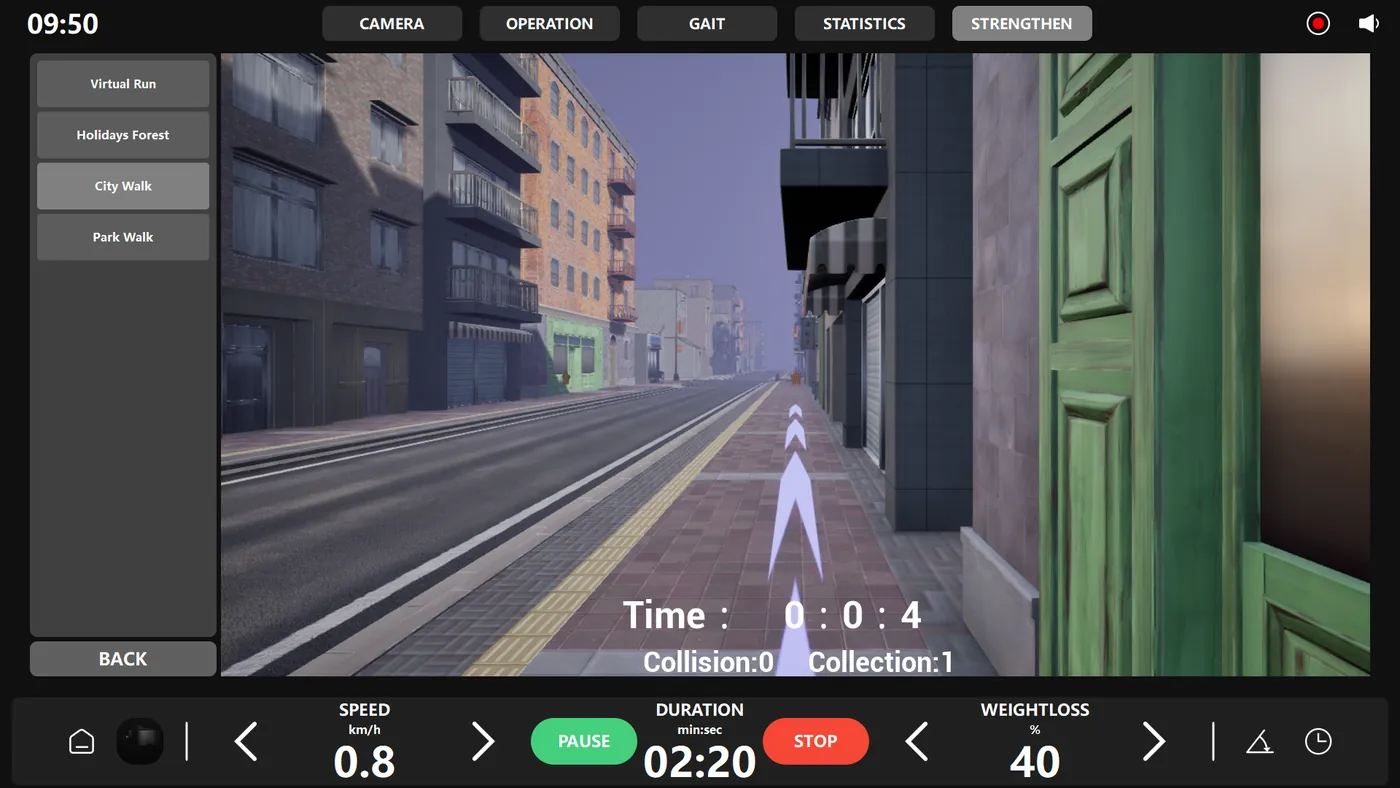

Scenarios & games
Ten centre-of-gravity transfer balance games are included. The optional situational interaction system adds four walking scenarios, such as a city or park walk, to keep patients engaged.

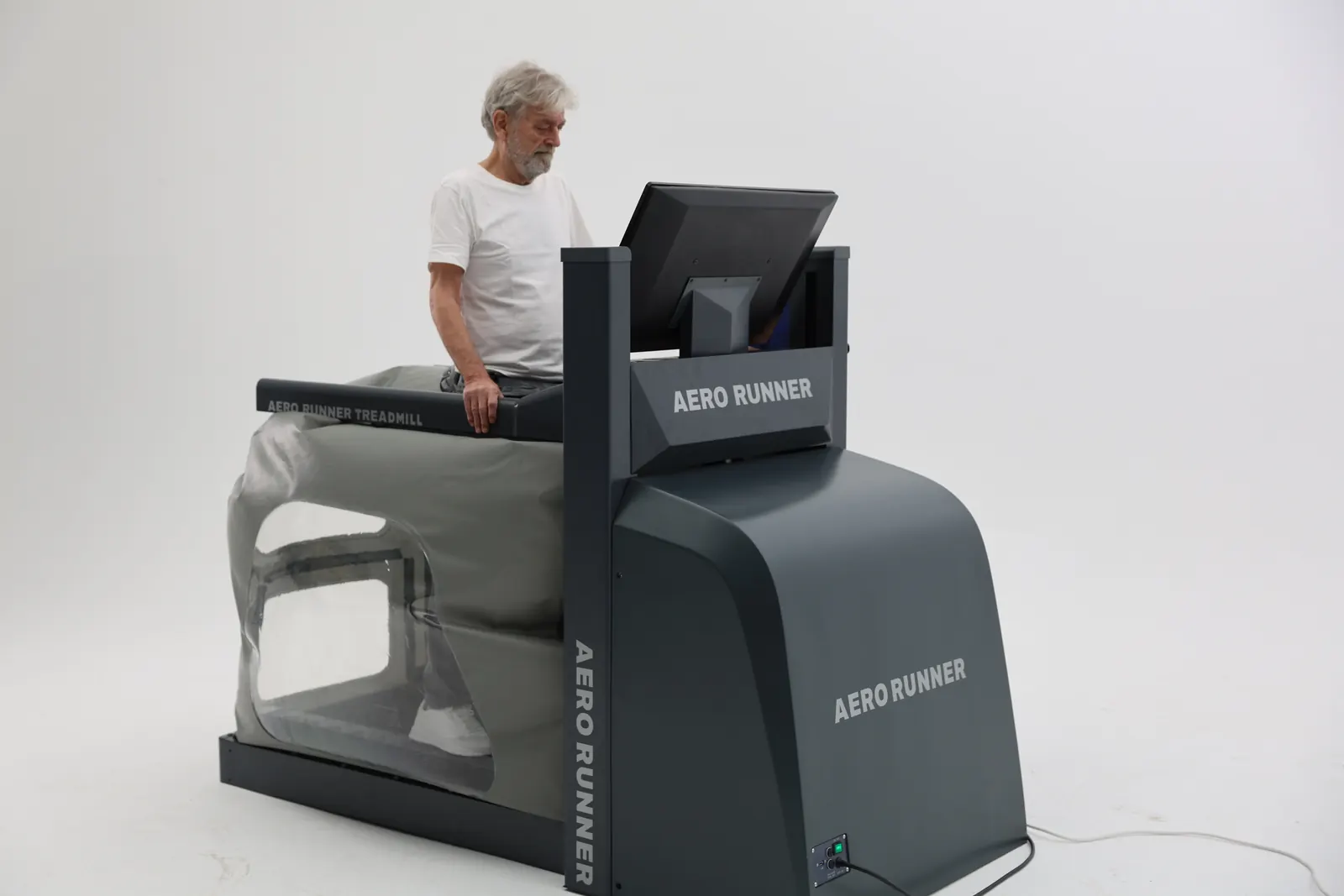

In the clinic
What a session looks like
From stepping in to the last minute of training, the clinician stays in control of load, speed and feedback.
01

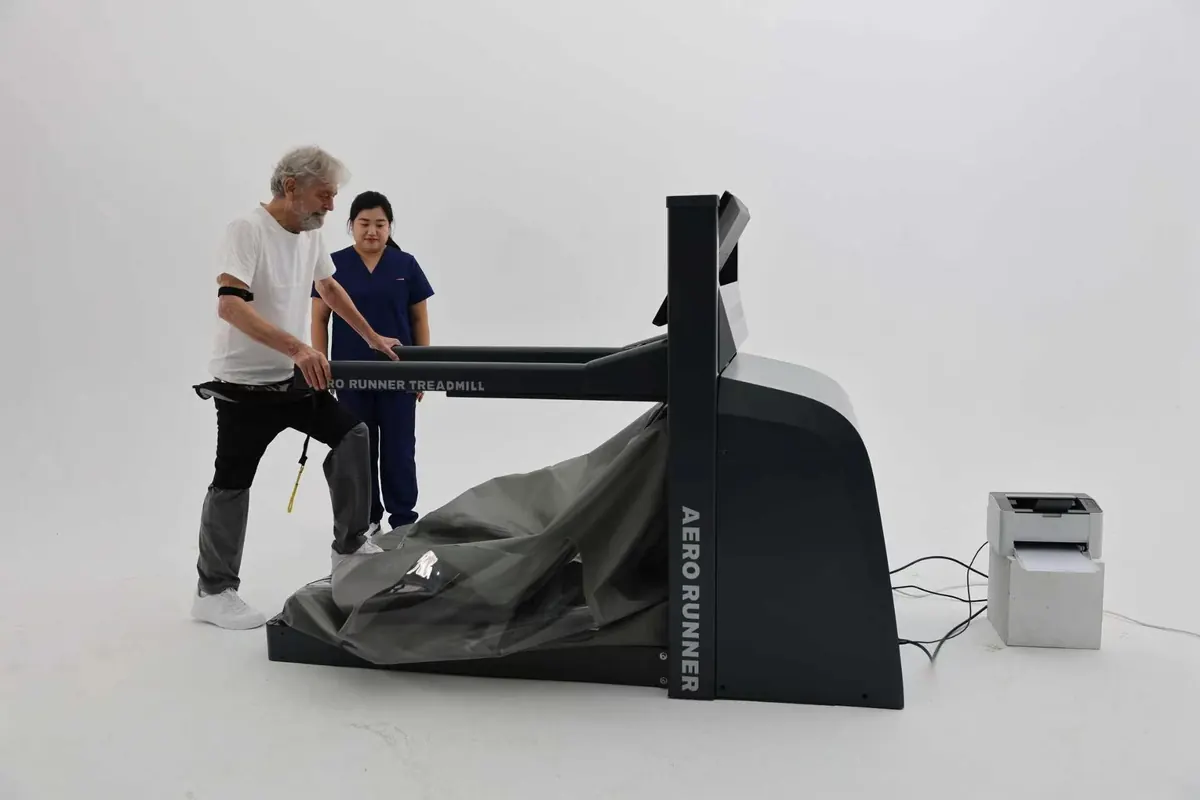

Step in
The chamber opens at the back, and the patient steps onto the belt with a clinician beside them.
02

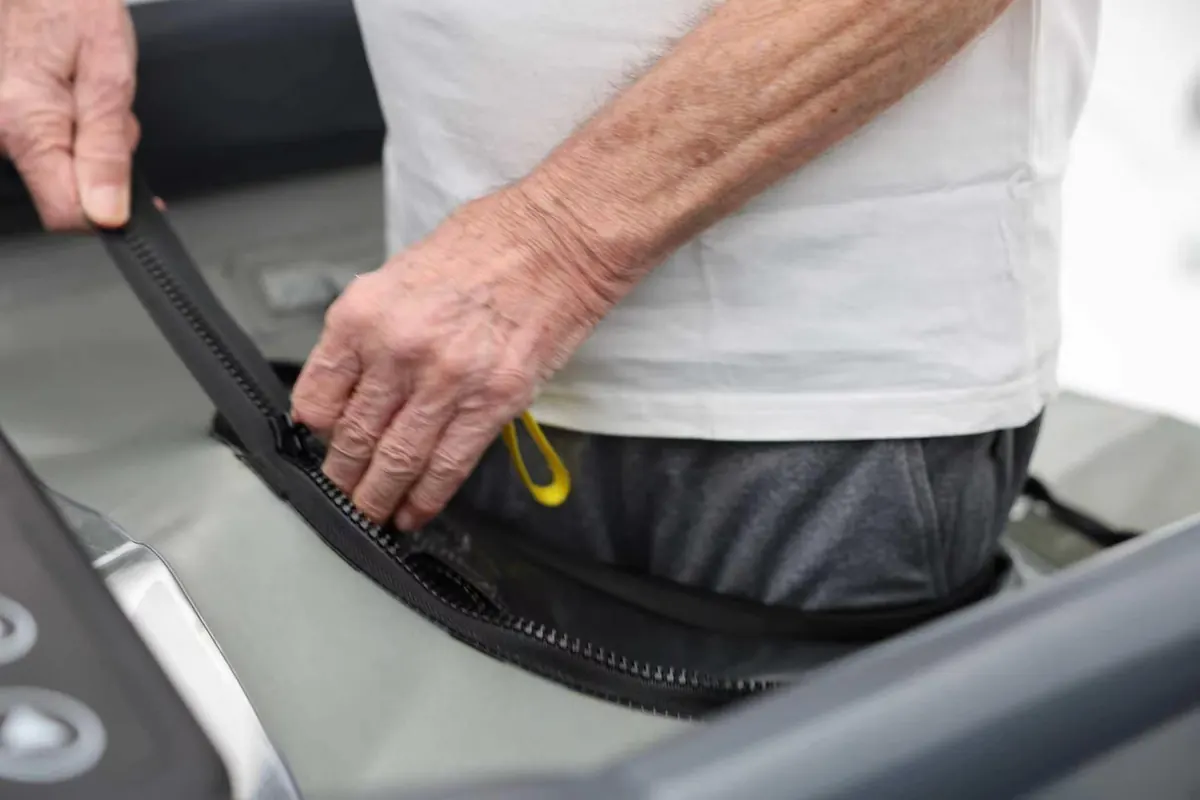

Seal at the waist
A zip seal at the waist closes the chamber, so the pressure system can take the share of body weight the clinician sets.
03

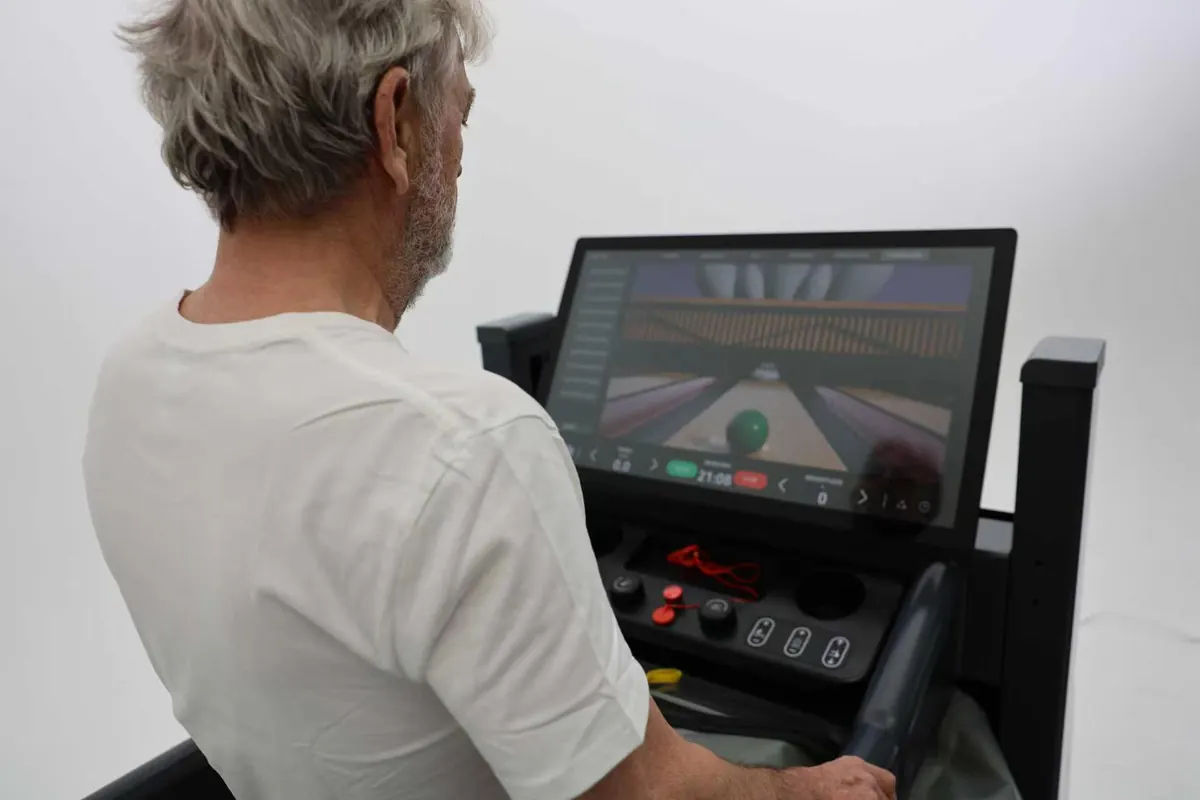

Train with feedback
Balance games and live data keep the patient focused while the clinician watches the gait.
04
Go further
Optional situational interaction scenarios add variety to longer programmes.
All three models share the same pressure system, gait tracking and software. They differ in top speed.
Specification
GA100
GA200
GA300
User weight range
36–185 kg
36–185 kg
36–185 kg
Body-weight support
0–100%, adjustable in 1% steps
0–100%, adjustable in 1% steps
0–100%, adjustable in 1% steps
Speed (reverse to forward)
−10 to 20 km/h
−10 to 25 km/h
−10 to 30 km/h
Starting speed
0.1 km/h (ServoStep)
0.1 km/h (ServoStep)
0.1 km/h (ServoStep)
Incline
0–18% (0–10°), 19 levels
0–18% (0–10°), 19 levels
0–18% (0–10°), 19 levels
Live video monitoring
3 cameras at once: left, right, front
3 cameras at once: left, right, front
3 cameras at once: left, right, front
Infrared gait sensor
Standard
Standard
Standard
Gait display
Standard
Standard
Standard
Balance games (centre-of-gravity transfer)
10 types
10 types
10 types
Heart-rate monitoring and heart-rate controlled running
Optional
Optional
Optional
Situational interaction system
4 scenarios (optional)
4 scenarios (optional)
4 scenarios (optional)
Touchscreen
23.8 in
23.8 in
23.8 in
Armrests
Manual adjustment
Manual adjustment
Manual adjustment
Airbag material
Environmentally friendly and odourless (manufacturer statement)
Environmentally friendly and odourless (manufacturer statement)
Environmentally friendly and odourless (manufacturer statement)
Manufacturer warranty
Up to 5 years (optional)
Up to 5 years (optional)
Up to 5 years (optional)
S models
GA100S, GA200S, GA300S
Report printing
Motorised adjustment
32-inch touchscreen
Perturbation module for gait stability
Specifications published by Tianjin GoldenAll Medical Device Co., Ltd. (AERO RUNNER leaflet, 2026). Installation, training and local service by TRIMAX Healthcare. MDA registration details available on request.
Upgrades
Expand the system as your programme grows
GoldenAll offers three add-ons for balance, engagement and immersive training.

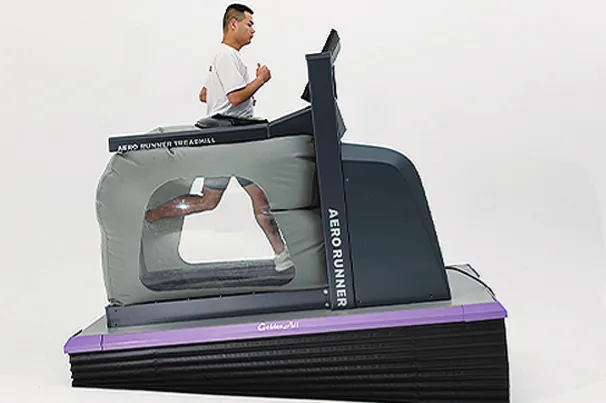

Perturbation training board
Perturbation training board
Control terminal
Software

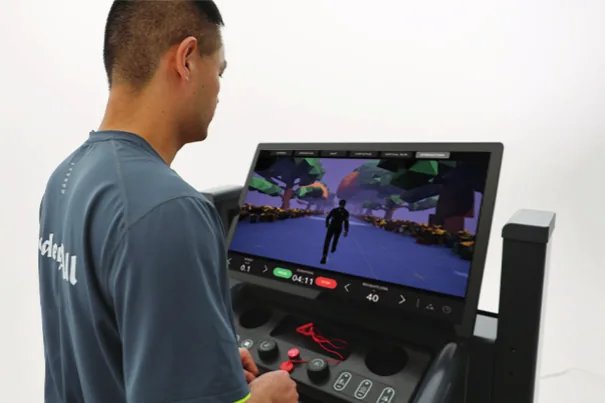

Situational interaction system
High-performance servers
Interactive display
Situational interaction software

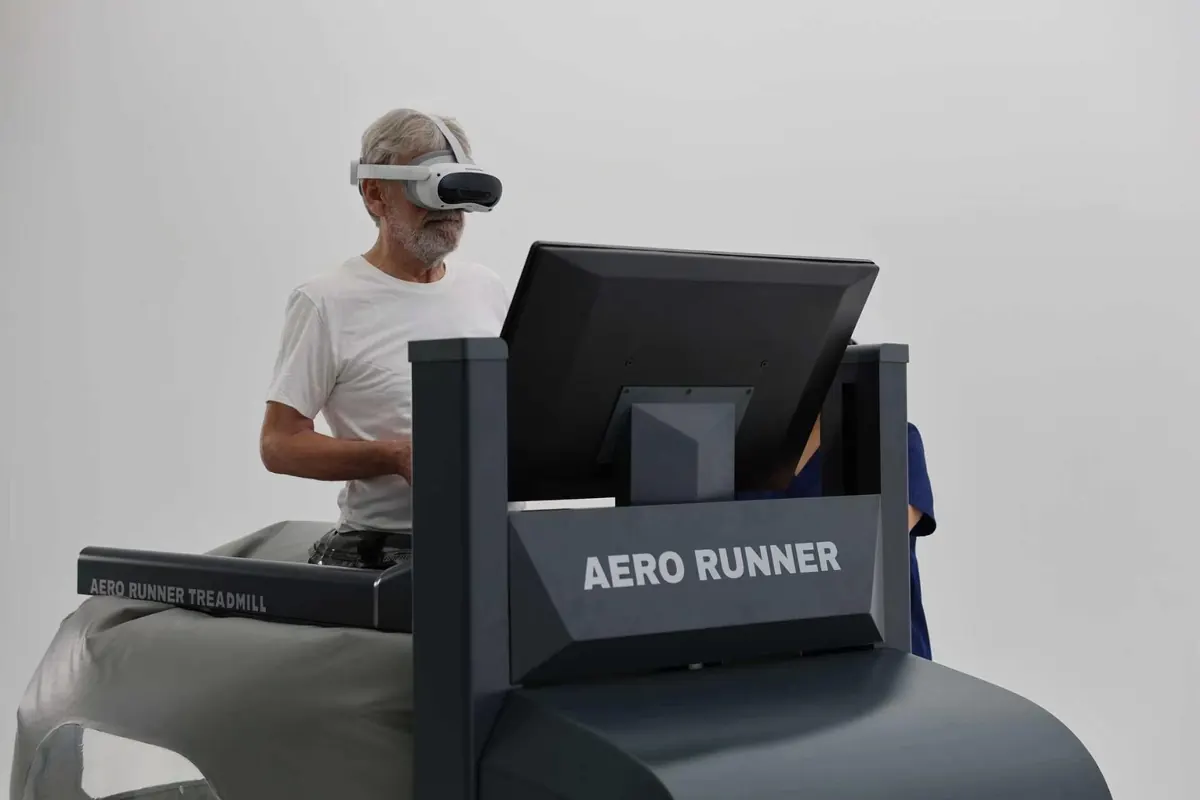

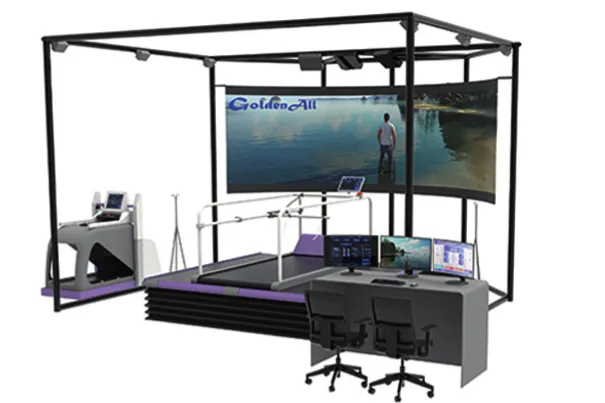

Immersive situational interaction device High-end
High-performance servers and monitors
Laser projectors and surround screens
Situational interaction devices
Perturbation training board (optional)
Clinical applications
Where clinicians use it
Post-surgical rehabilitation
Graded loading after knee, hip and ankle procedures.
Orthopaedic & sports injury
Keeping patients training while limiting impact during recovery.
Gait and balance retraining
Live gait data, balance games and perturbation training (S models).

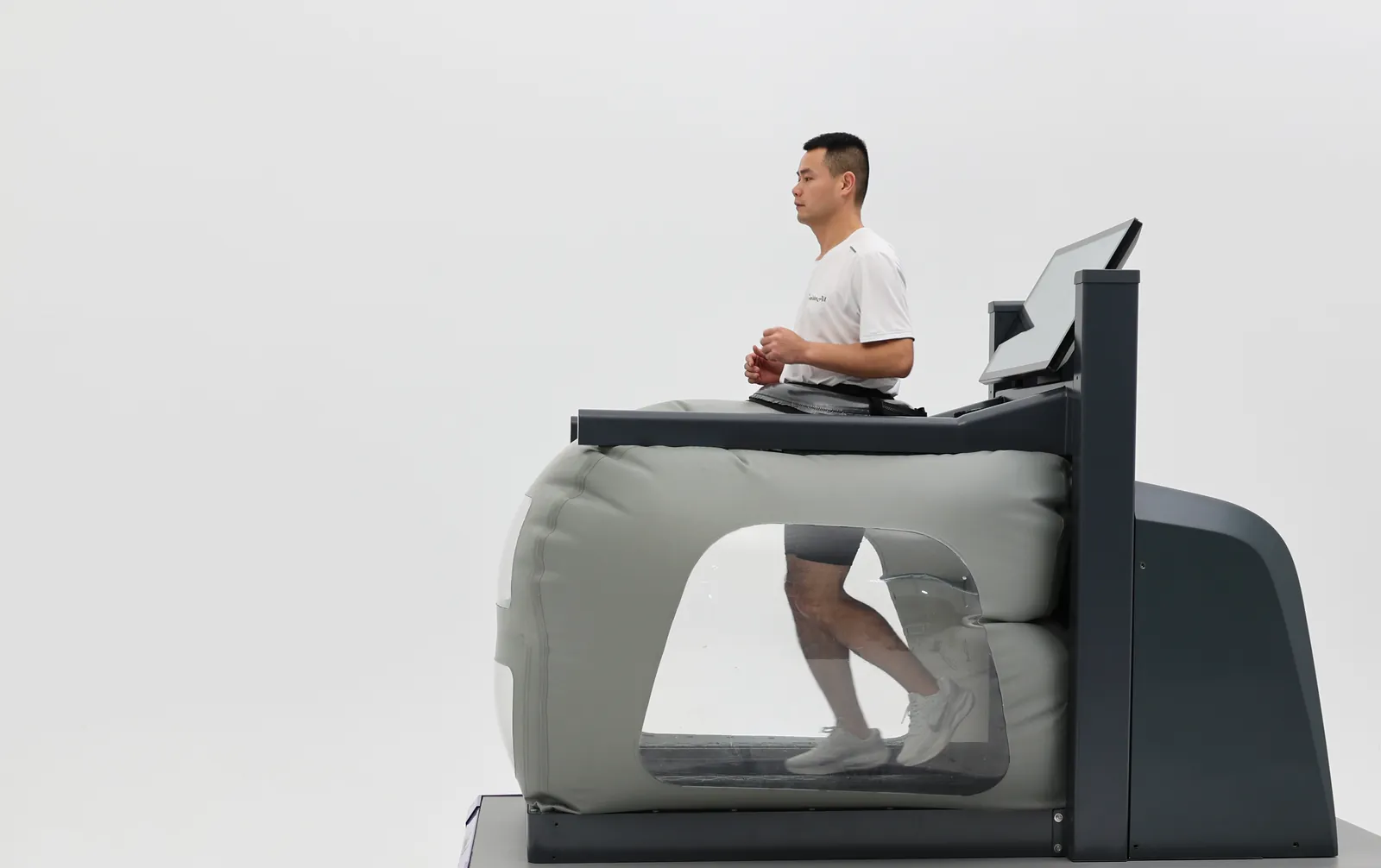

Return to running
A structured progression back to full body weight and speed.
These reflect common clinical uses of anti-gravity treadmills. A qualified clinician should assess whether anti-gravity training suits each patient.
Service & support
Backed by GoldenAll, supported by TRIMAX
GoldenAll develops the hardware and software in-house. TRIMAX installs, trains and services every unit in Malaysia.
Shipped as a whole unit
The treadmill arrives in one piece, which makes installation simpler.
Up to 5-year warranty
Extended manufacturer warranty is available as an option.
Installation & training
Site survey, installation, commissioning and clinician onboarding by our Kuala Lumpur team.
Preventive maintenance
Scheduled PPM visits and repairs, recorded against each machine's serial number.
